Light & Ventilation — Wide Balconies and Open-to-Sky Shafts
Quick answer
Light and ventilation at Sorrel Heights come from two design moves: 5-ft wide rear balconies on the flats and open-to-sky shafts marked O.T.S beside kitchens and toilets. Together they bring daylight into service areas, give moisture and cooking smells a path out, and allow cross-ventilation that keeps rooms cooler and drier.
Why this is worth more than most amenities
A swimming pool gets used a few times a month. Light and ventilation are used every hour you are at home, and they decide how much electricity you burn, how your home smells, whether grout goes black in the second monsoon, and how a bedroom feels at 3pm in May.
Two features do most of the work at Sorrel Heights. The 5-ft wide rear balconies on the flats, and the open-to-sky shafts — marked O.T.S on the plans — placed next to kitchens and toilets. Neither appears in an amenities list with a photograph, which is exactly why they are worth explaining.
You can verify both in ten minutes on a site visit: stand in the toilet and look up, stand on the balcony and measure it, open the balcony door and a window on the opposite side and feel whether air actually moves. Do it as part of the site visit checklist, and see the drawings on the floor plans.
The 5-ft wide balcony
Five feet is the threshold at which a balcony stops being a decorative ledge and becomes usable floor. At three feet you can stand on it. At five feet two chairs and a small table fit with the door still opening freely, or a folding drying rack, or a row of planters along the railing with a walking path in front.
For light, depth matters in two directions. A deeper balcony shades the room behind it from high summer sun, which measurably reduces heat gain through the bedroom window in May and June. In winter, when the sun is lower, light reaches further into the room. That is the same principle as a chajja, and it is why a well-sized balcony is a cooling device rather than just outdoor space.
The 2BHK + Study and the 3BHK plans show the 5-ft wide balcony running across the rear bedrooms, and the brochure lists the wide balcony among 3BHK Type A's features. Ten practical uses are in wide balcony ideas, and the room-by-room context is in the 2BHK + Study walkthrough.
Open-to-sky shafts, explained
In any building with more than a couple of homes per floor, some rooms end up away from the outer wall. Usually those are toilets and part of the kitchen, and in a poorly planned building they have no window at all — so they rely entirely on an exhaust fan and a light bulb, twenty-four hours a day.
An open-to-sky shaft solves this. It is a vertical void running up through the building and open at the top, with windows or ventilators from the adjoining rooms opening into it. Daylight comes down the shaft; warm, moist air rises up it, because warm air rises naturally and the shaft gives it somewhere to go. This is called stack effect, and it works without power.

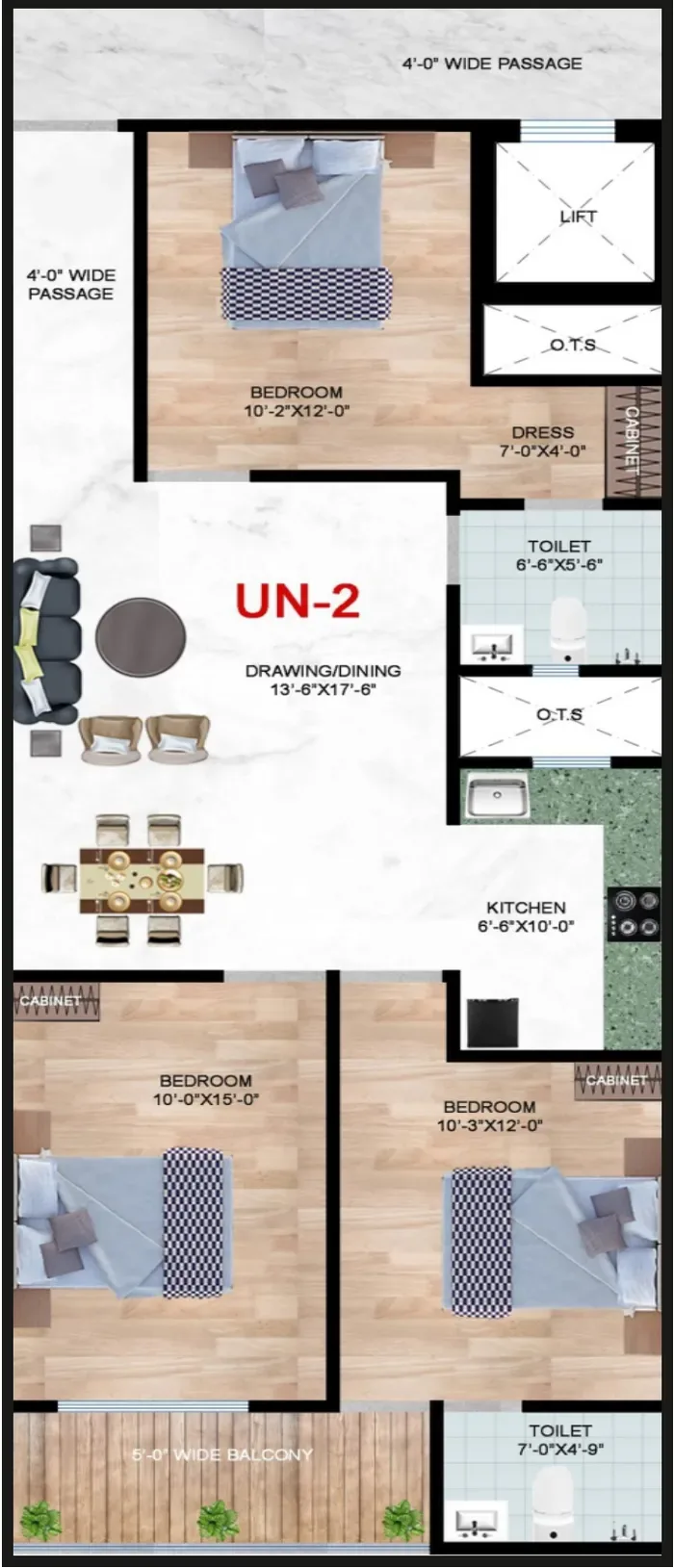

On the Sorrel Heights typical floor plan, O.T.S spaces are marked beside the service areas. The practical outcomes: a toilet with daylight for most of the day, bathroom humidity that clears instead of sitting on the tiles, and cooking smells that leave the kitchen rather than the living room. How the shafts fit into the floor plate is described in the typical floor guide.
Balcony versus shaft — what each one does
| 5-ft wide balcony | Usable outdoor floor; shades the room in summer; lets low winter sun in; drying and planting space; cross-ventilation inlet |
|---|---|
| Open-to-sky shaft (O.T.S) | Daylight and air to internal toilets and kitchen; removes humidity and cooking smells by stack effect; no power needed |
| Where you find them | Balcony: rear of the 2BHK and 3BHK flats. Shafts: beside service areas on the typical floor |
| Main benefit | Balcony: comfort and usable space. Shaft: dryness, hygiene and lower daytime lighting load |
| What to check on a visit | Balcony: depth and drainage slope. Shaft: look up from inside the toilet and see sky |
| Maintenance | Balcony: keep the drain outlet clear. Shaft: keep the ventilator and its mesh clean |
How to actually use cross-ventilation
Cross-ventilation needs two openings on different sides of the home, not one big window. Air comes in one and leaves the other, and the movement is what cools you rather than the temperature of the air itself.
- Evening flush. From around 7pm in most months, open the balcony door and a window on the opposite side of the home for twenty minutes. The hot air trapped near the ceiling leaves and cooler outside air replaces it. Do this before switching on the AC and the unit works less.
- Morning close-up. In peak summer, close windows and draw light-coloured curtains by 10am. You are keeping out heat, not light — a pale curtain still lets a room glow.
- Exhaust towards the shaft. Run the kitchen chimney and bathroom exhaust so they vent towards the shaft and keep the ventilator open, or you are pushing air against a closed door.
- One room at a time. Closing internal doors while airing one room concentrates the flow and works faster than opening everything.
- Winter mornings. Ten minutes of opening after everyone wakes clears overnight moisture, which is what causes damp corners in unventilated bedrooms.
Keeping toilets and kitchens dry
Damp is the source of most complaints in a two-year-old flat — black grout, peeling paint behind a cistern, a musty smell in a toilet that is used daily. Almost all of it is a ventilation problem rather than a construction defect.
Four habits fix it. Leave the toilet ventilator open rather than shut, so moisture goes up the shaft. Squeegee or wipe the shower area after use, which removes more water in thirty seconds than an exhaust fan does in an hour. Run the exhaust for a few minutes after a bath rather than switching it off with the light. And keep the floor trap clear so water drains fully instead of standing.
In the kitchen, use the chimney every time rather than only for frying, and wipe the counter dry at night. Sorrel Heights specifies premium tile flooring, a designer false ceiling in all rooms, and Cera or equivalent fittings with sensor lights in the toilets — the care detail is in the premium tiles care guide and the full list on Sorrel Heights specifications.
What this saves you
Treat this as arithmetic rather than a claim. A toilet and a kitchen that have daylight do not need a light burning through the day. Two 12 W LED points left on for eight hours a day would use roughly 5.8 units a month; daylight makes most of that unnecessary. The evening flush habit typically delays the AC by half an hour to an hour on shoulder-season days, which on a 1.5-ton unit is a meaningful share of a summer bill.
The bigger saving is in what you do not have to repair. Dry grout does not blacken, dry paint does not peel behind a cistern, and a dry wooden door frame does not swell. None of that appears on an electricity bill, and all of it appears in what you spend in year four. Related reading: concealed wiring and LED lighting and air purifiers for a home in Delhi NCR for the days when opening a window is not the answer.
Check the light yourself, on the plans and on site
Ask Sorrel Buildcon which facing is available on the floor you want, since facing decides how much of this you get, and get the current indicative price list & payment plan for that unit. Open the typical floor and unit layouts on Sorrel Heights floor plans, compare the balconies on 2BHK + Study flats in Jalpura and 3BHK flats in Jalpura, and book a site visit through contact the Sorrel team — D-161, Sector 3, Greater Noida West, Monday to Saturday, 9am to 6pm. Go at the hour you are usually home and see where the sun actually falls.
Why daylight matters
Rooms with daylight need fewer lights during the day, feel larger and dry faster after mopping. Toilets with natural ventilation stay fresher and are less prone to damp.
Summer and winter
In NCR summers, open windows early morning and after sunset, and keep curtains drawn in the afternoon. In winter, open the balcony in the late morning to let in sun. A balcony with plants also cools the air entering the room.
Checking a unit on your visit
Visit at the time of day you are usually home. Stand in the living room and bedrooms and note where the light comes from. Ask about facing for your unit — see site visit checklist.
